Power electronics

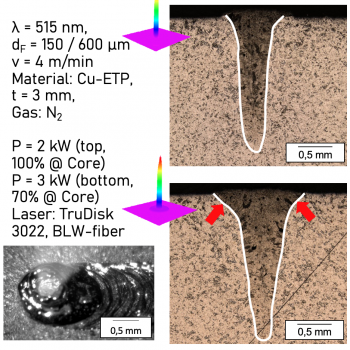

Laser beam welding of copper using visible laser radiation and beam shaping

Use of copper in mobility due to high thermal and electrical conductivity



Challenge

highest seam quality for increased weld depth (e > 1,5 mm) in copper/ copper alloys



Approach

adapted intensity distribution to increase energy input and affect melt pool shape close to the surface

  • Buffering of keyhole instabilities

  • Increased weld seam quality

Bildschirm­foto 2023-06-26 um 08.56.35

Laser beam welding of metal ceramics substrates

Challenge:

increase of process stability during laser beam welding of copper-ceramic substrates with limited material thickness; delamination effects



Approach:

pulsed welding process using green laser radiation

  • Increased reproducibility of penetration depth

  • Reduction of heat input


Bildschirm­foto 2023-06-26 um 08.57.17
